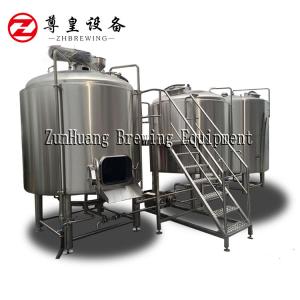

Silver Color Beer Making Machine , Craft Beer Plant Fermenting Equipment

10BBL / 15BBL Stainless steel commercial beer brewing machine beer production line beer fermentation equipment

Part I .Product Description

The whole beer equipment is consisted of Malt milling system, Mash system, Fermentation system, Refrigeration system, Control system and CIP cleaning system. The tank of the system all adopts Red copper and S.S 304,and the system also have high automatic control capacity.
Simple operation ,PLC automatic control system ,PLC semi-automatic control system.
Equipments characteristics: Small investment, quick effectiveness, high quality, lower prices, the investment repayment is fast, the service life of equipment is long, easy operation, lower cost. Strong technical force.
At the same time if you have requirements, we could design and produce the products you need!


Part II: Equipment list
Beer Brewing Equipment List

Part III: Equipment system

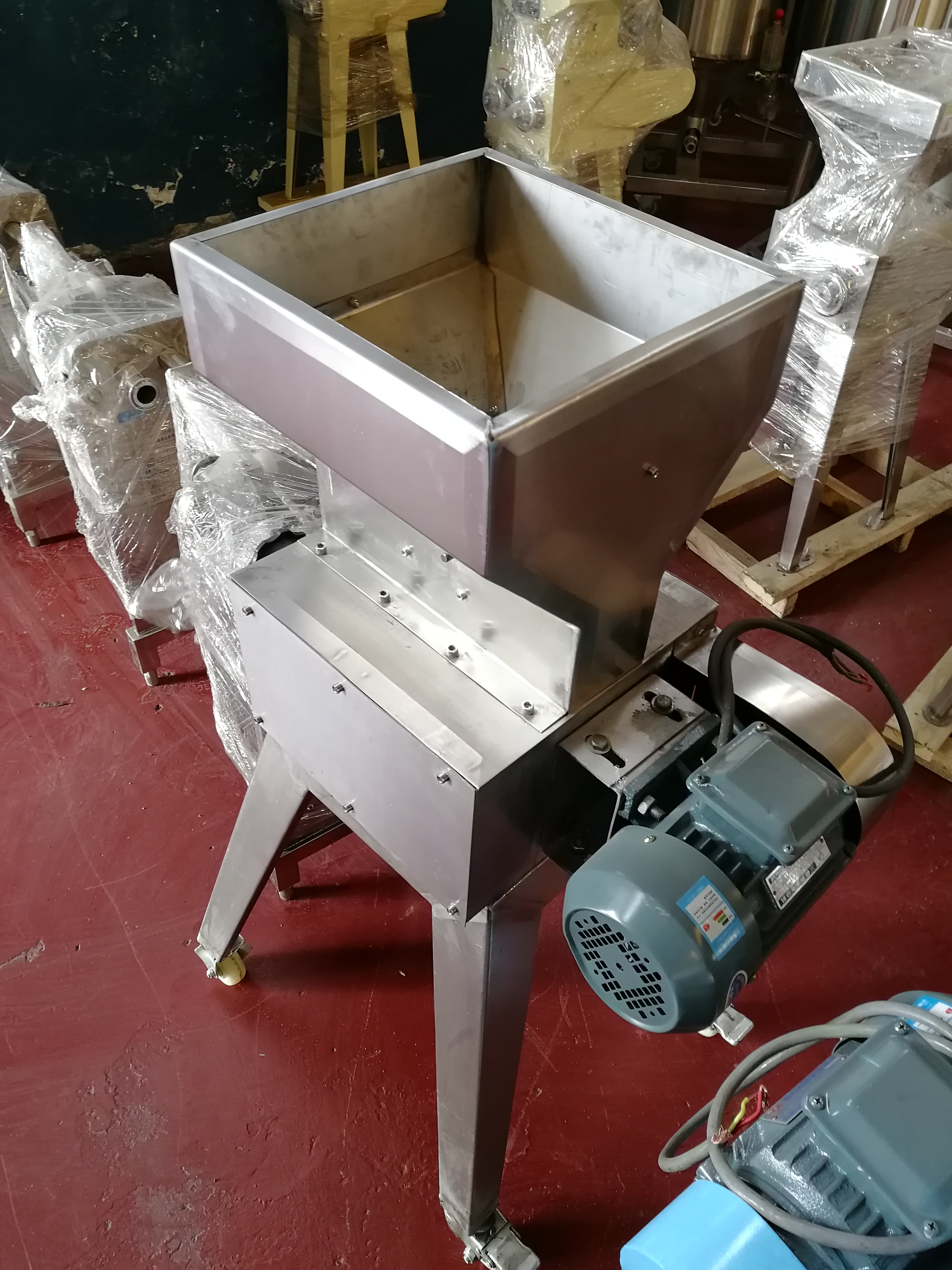

1. Malt Milling System
Malt crushing equipment used roller mill, distance adjustable. It is the most simple, a pair of drawing rollers, the two rollers during grinding relative rotation, the rotational speed of a roller is fixed, the other is adjustable. Operation to ensure malt evenly distributed over the entire roller, and feed rate is moderate, consistent feed rate.

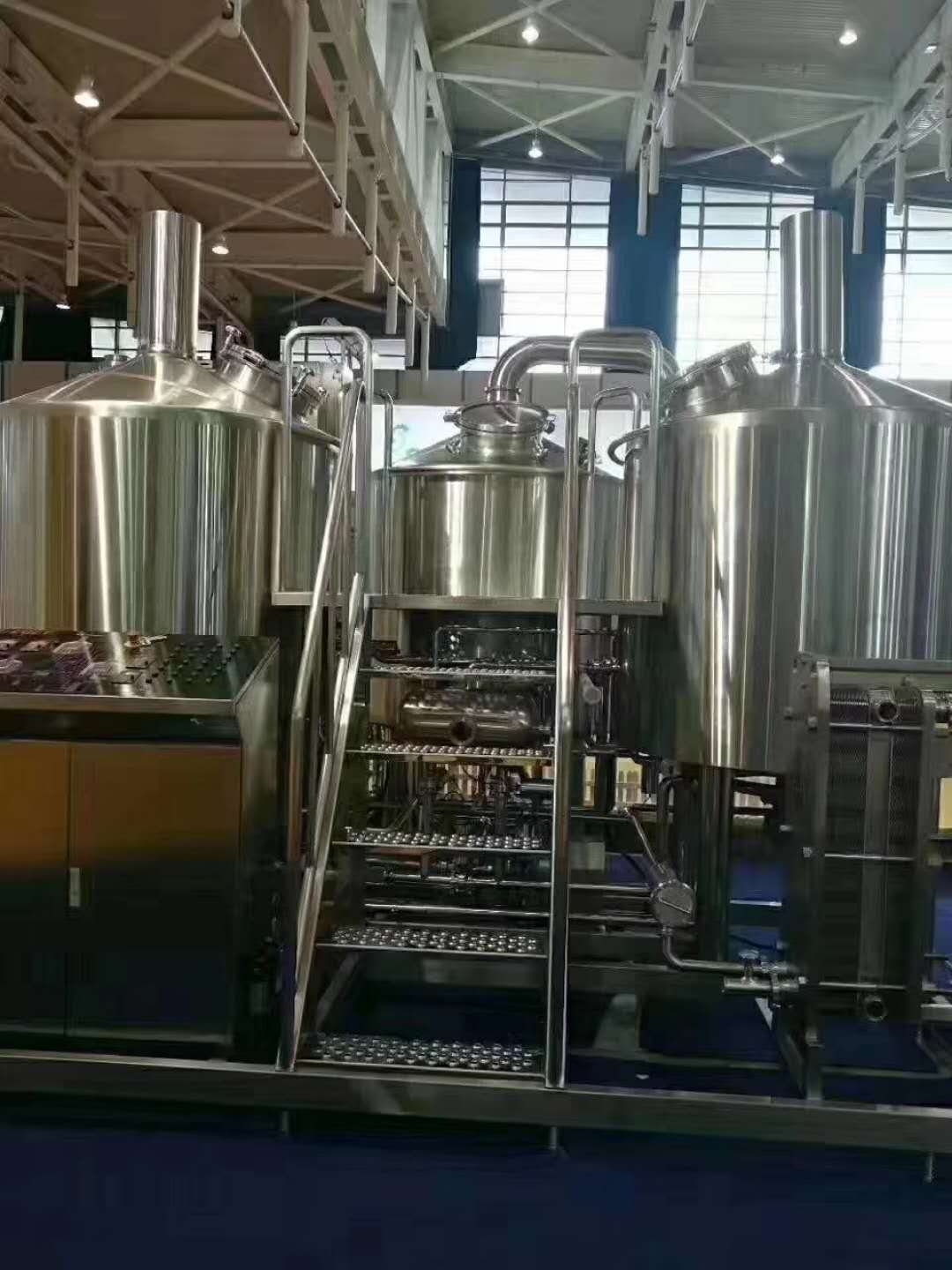

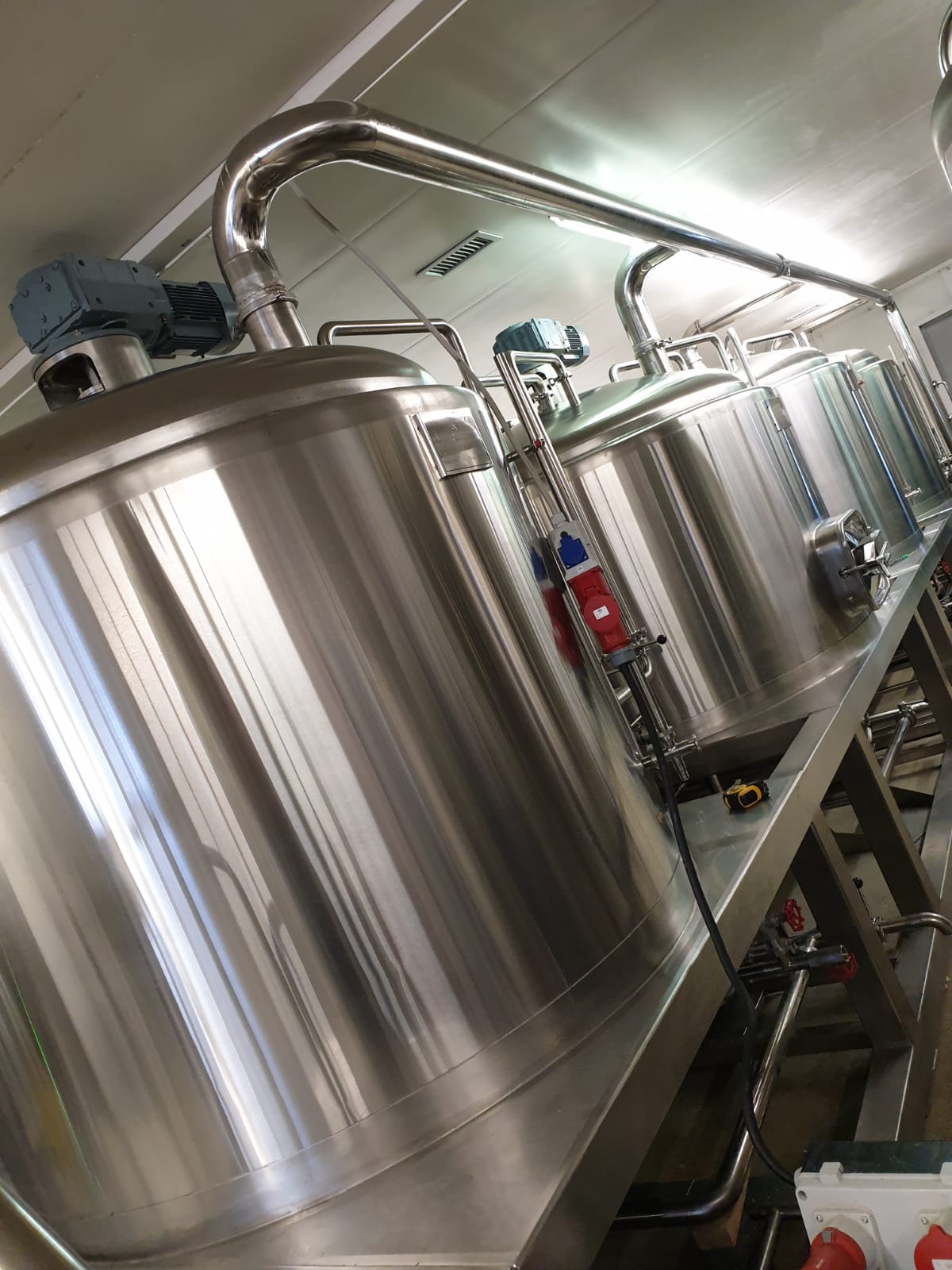

2. Mash System
Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.
The main part of equipment in this system are made of SUS304, SS316 reaching international standard level.(Zunhuang company also can customized high quality copper equipment according to user place.)

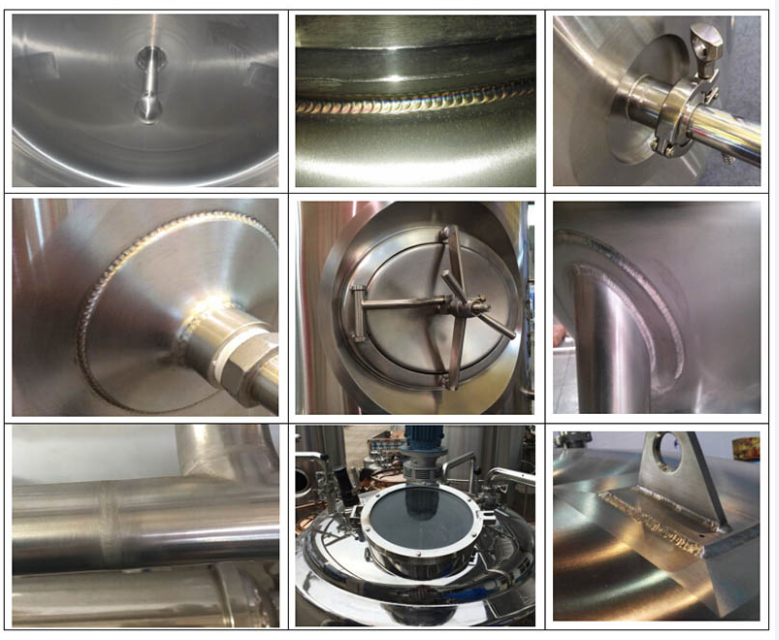

Details




All the pipes and vales among the whole equipment are connected by sanitary joint for easy to connect, install, uninstall, move and alter.

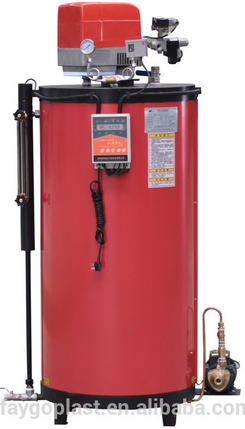

Now Zunhuang equipment adopt electric heating, steam heating, gas heating and direct fire heating method on mash heating system.

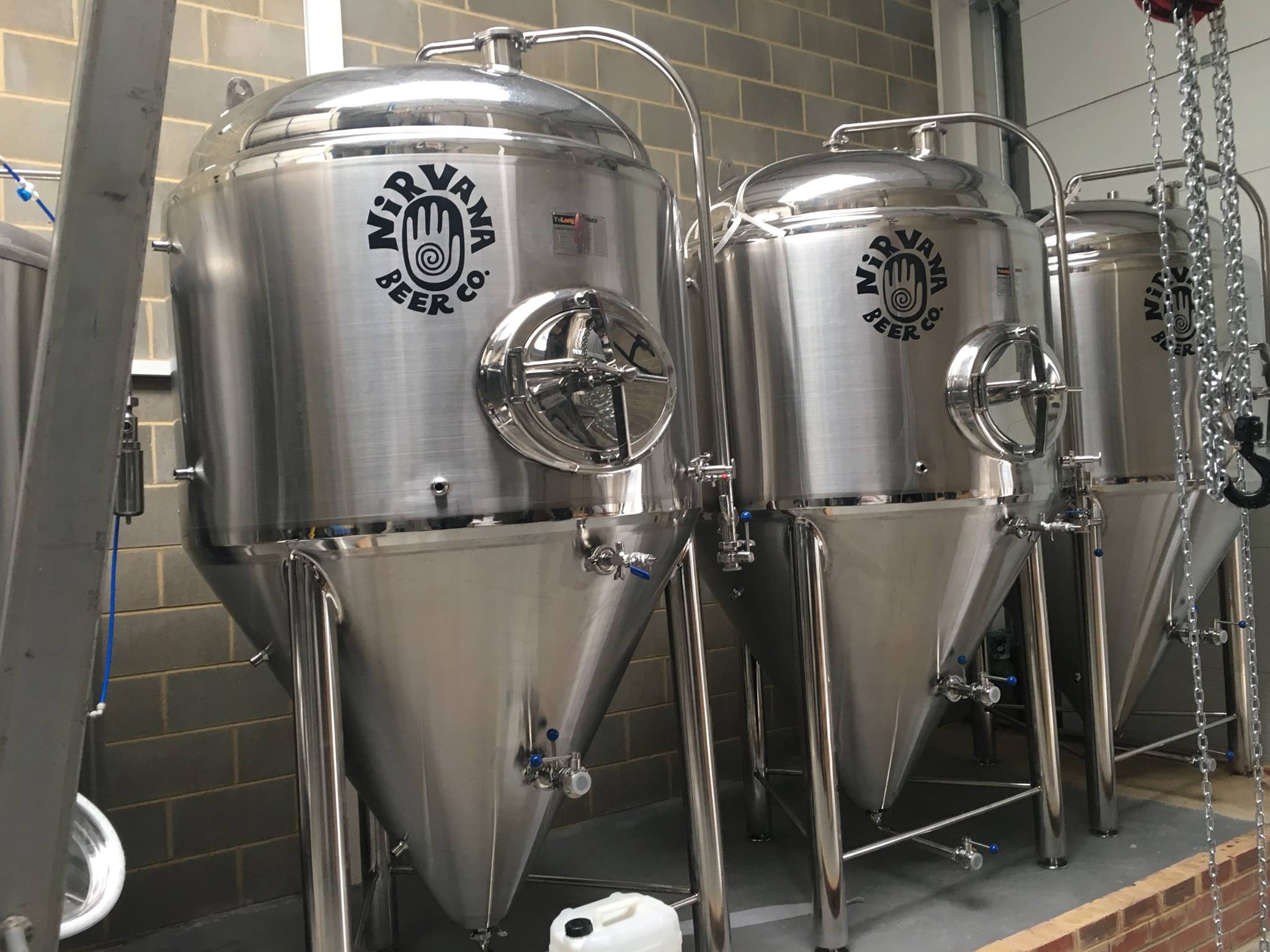

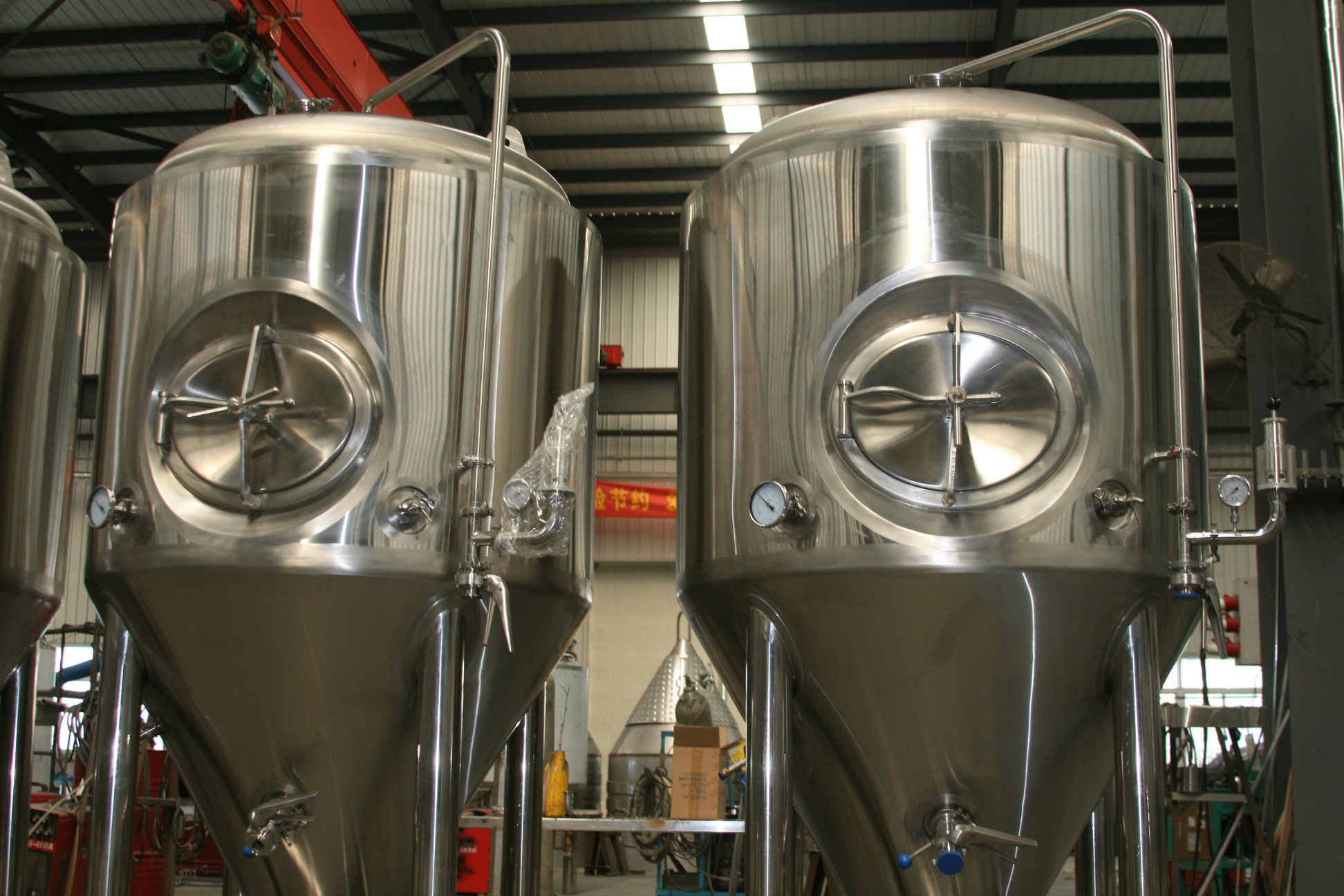

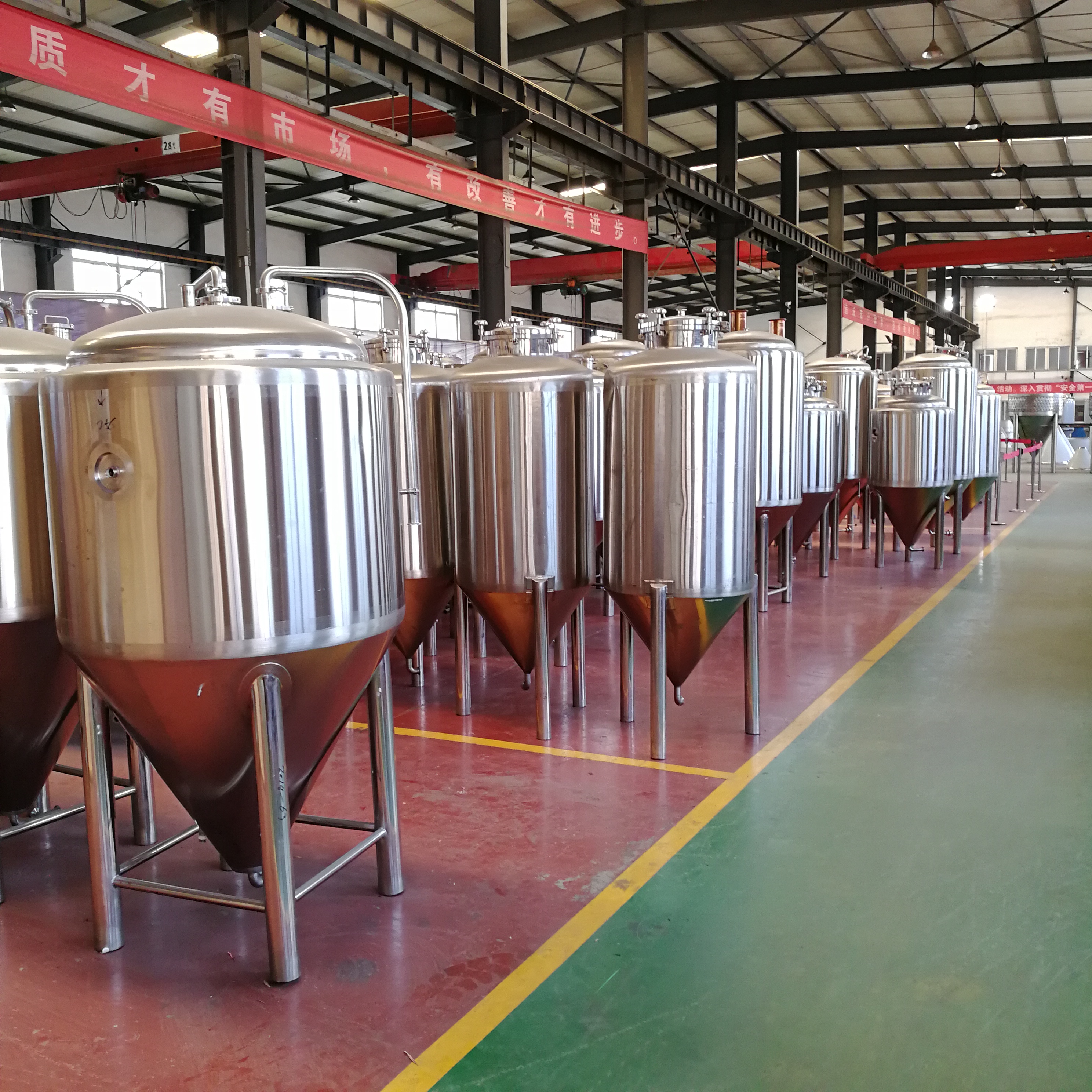

3. Fermentation System
Zunhuang company are generally use 12 days as fermentation to configured fermentor,high quality fermentation, fermented good quality beer,the right amount of good commodity market with a bright future.




Details and accessories






The fermentation tank adopt cooling jacket and two-stage cooling refrigerant control mode at the cone and cylinder. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.


4. CIP Cleaning System
CIP cleaning system is consist of alkali tank, acid tank, sterilization water tank, disinfection tank, sanitary pump.
Accordingly the capacity of the equipment, Zunhuang company special manufactured small CIP cleaning trolley.

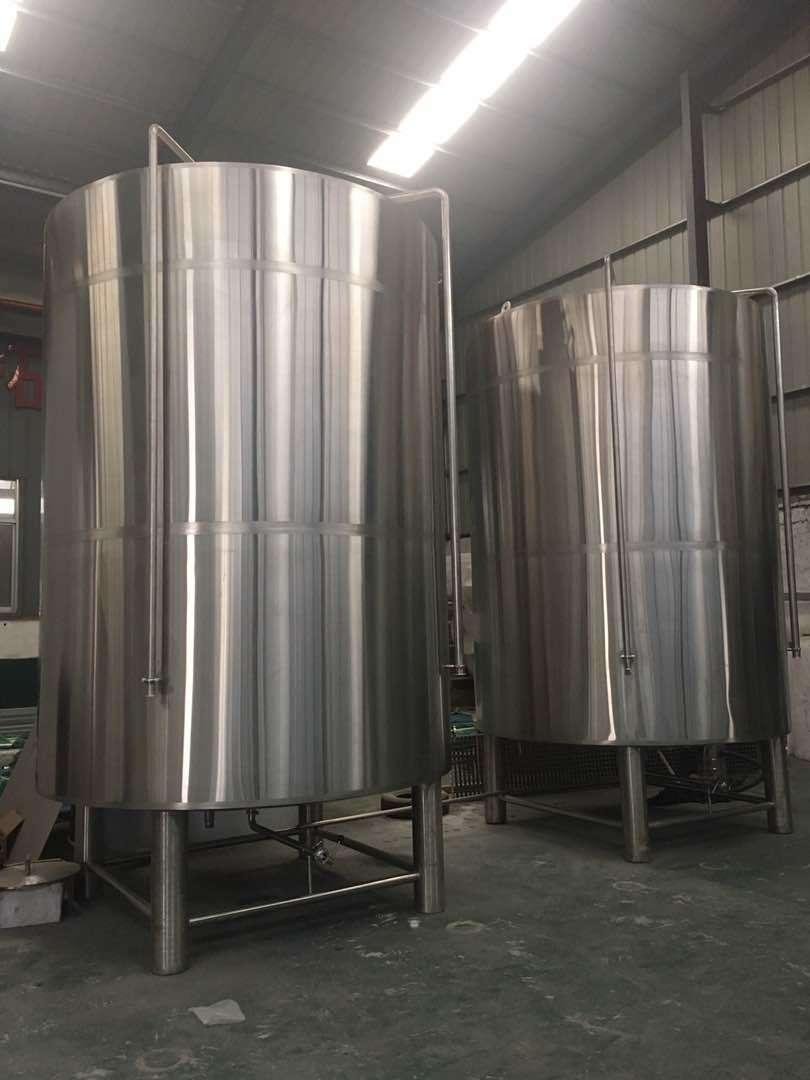

5. Cooling System
Cooling system mainly includes Ice water tank, glycol water tank, plate heat exchanger, refrigeration unit, cooling pipelines and vales and control system.

Zunhuang select the imported compressor refrigerator, safe operation, low failure rate to solve the user's worries. All the piplines systems used in sanitary and without welding dead, high quality polyurethane insulation, effectively reducing the heat loss.

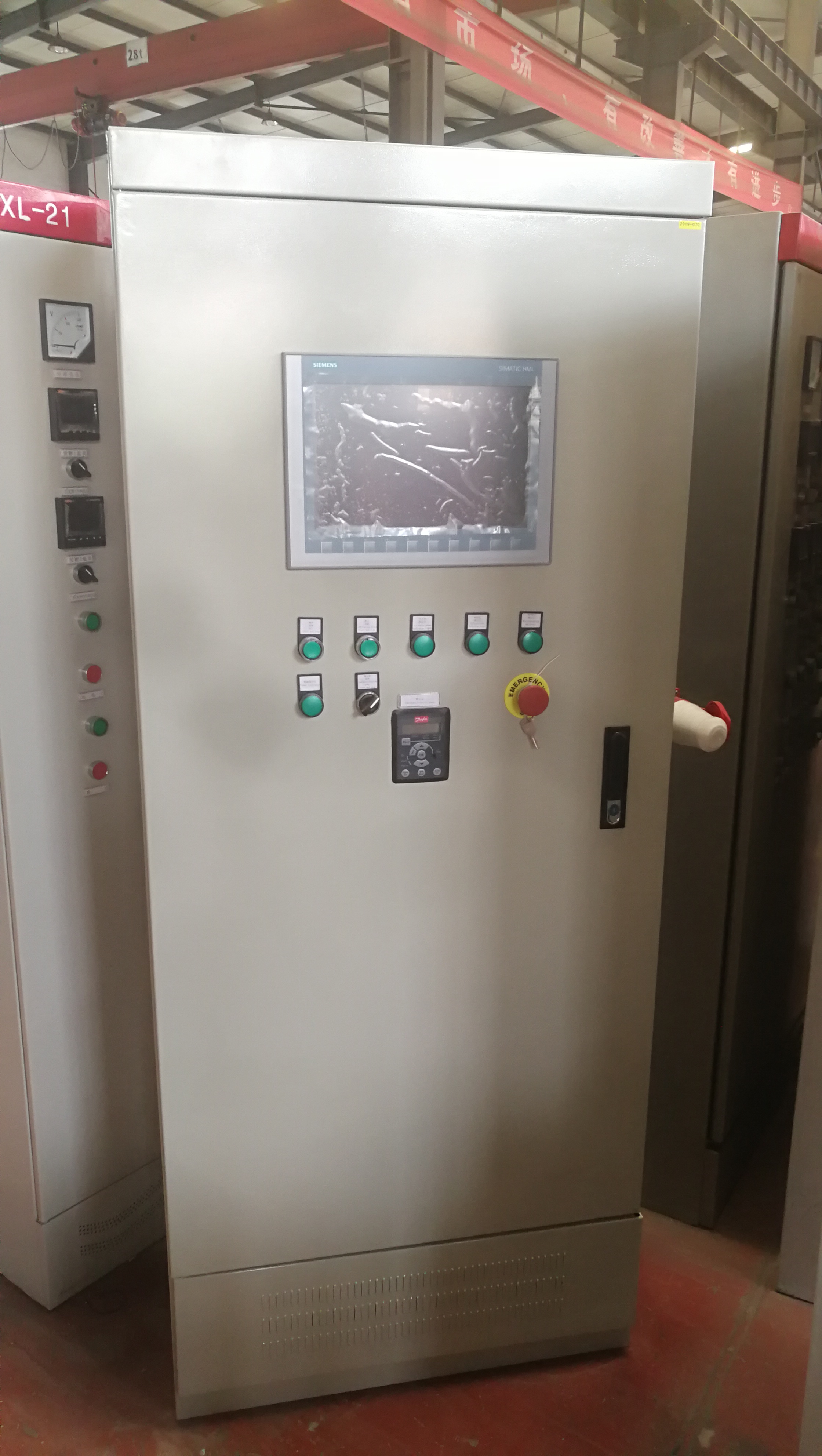

6. Control System
Control system is the core part in the whole beer production line, including: malt mash, mash, fermenting, cooling, temperature control, pressure control and other auxiliary. It can achieve the part control or whole PLC automatic control.


Part IV:Packing and shipping
1. Ocean shipment,railway shipment,express delivery.
2. No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.
3. And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.
4. We packed the goods to meet the transport distance, shock, rust and anti-handling requirements damaged before shipping, to ensure the safe transport of goods to reach the buyer designated location before it is shipped.


Part V:Company
Shandong Zunhuang Brewing Equipment Co., Ltd

1. Shandong Zunhuang Brewing Equipment Co., Ltd, located in Jinan city(China, mainland), is a professional beer equipment, fruit wine equipment manufacturer in China. Shandong Zunhuang could provide the turnkey project for customer, including Production→ Inspection→ Packing & Shipping→ Installation &Training → After Sales.

2. The equipment has exported more than 60 countries and regions, including the United States, Spain, Canada, Sweden, Denmark, Russia, India, Brazil, and other countries.




Part VI:Company service
Being our customer, you can get the following service:
1. Projects supporting (Layout of equipment and equipment site);
2. Brewing formula & technology;
3. Equipment installation at your location;
4. Equipment debugging and trial brewing;
5. Equipment maintenance;
6. Personal training.
